BRISTELL B23 Turbo
The airplane’s maximum take-off weight is 1650 lbs and it has an empty weight of 1025 lbs, giving a 628 lbs useful load capability. With a 31.7 gal fuel tank capacity, the BRISTELL B23 is “a very good cruiser. The airframe is designed for long life and has a robust structure” says Milan Bristela.
BRISTELL has produced more than LSA aircraft worldwide, has launched the BRISTELL B23, its next generation low-wing airplane. The B23 has been designed to satisfy the European CS23 / U.S. FAR23 certification basis. BRISTELL says it “listened to feedback from many customers worldwide” before designing the new aircraft.
While the airplane looks very similar to the classic BRISTELL LSA, there is in fact far more to the new design. The fuselage is longer and the tail is larger, with an aluminium rudder; the flaps and stabiliser are bigger and more efficient; the composite main landing gear legs have been redesigned completely to be able to carry much higher loads than previous Bristell models; and the aircraft’s handling characteristics are much improved. In addition, a twin elevator trim tab function helps the pilot to optimise the forces on the control stick.
Basic equipment includes steerable nose wheel and a BRS ballistic parachute rescue system. The standard equipped aircraft also meets night-VFR requirements and can be upgraded to meet IFR requirements.
lbs mtow
gal fuel tank
BRISTELL B23 Turbo MISSION
“Everybody, once they have tried a BRISTELL, doesn’t want to fly with anything else.” Why?
ADVANCED AVIONICS AS STANDARD
Two Garmin G3x Touch screens with SyntheticVision, NAV/COM Garmin GNC255 radio, ADSB transponder GTX345 WAAS/GPS, Autopilot Garmin GMC 507 + LEVEL button, L3 instruments
BRISTELL B23 Turbo
High altitude performance
FL120, 5000 rpm, 70% power FF 26,7 TAS 240 km/h 4800 rpm, 75% power FF29,5, TAS 250 km/h Maximum cruise speed at FL120, TAS 283 km/h Climb from 4000 feet to 14000feet - 1450 feet/min on 160Km/h, pitch +8 degree. Maximum cruise speed in FL140 291 km/h TAS
Just for fun flying
Enjoy high performance thanks to the combination of the ROTAX engine and the MT propeller. Enjoy great views from the cabin. Fly fast and sporty - agility and excellent response to aircraft control will be on your side.
Travelling
Fly away, you have a long range of 600 NM. Pack even that thick book for reading, you can take up to 121 lbs of luggage on the plane. Fly comfortably at any time, even at night.
Fly any time, even at night
BRISTELL B23 Turbo is also certified for night flights under VFR conditions. Enjoy a quiet night flight in a certified airplane with dual glasscockpit and Garmin autopilot.
BRISTELL B23 TURBO main features
While the BRISTELL B23 Turbo is very similar to the classic BRISTELL LSA, its design has been fundamentally redesigned to withstand much higher loads than previous BRISTELL UL-LSA models.
Rescue system FOR MORE SAFETY

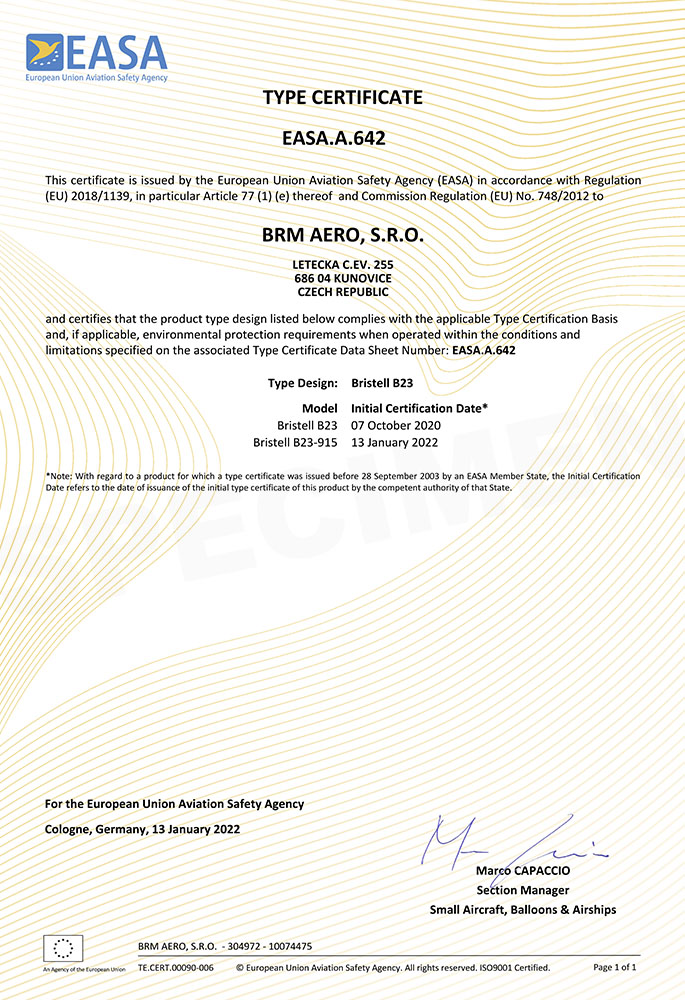

BRISTELL B23 has successfully passed the entire certification process without / with a ballistic rescue system from BRS, a company supplying rescue systems, for example, to Cirrus.
EASY TO FLY WITH Autopilot
Fly cross-country flights even more comfortably and safely. A modern and advanced GARMIN autopilot and GMC 507 control panel will help you.
Large luggage compartment
BRISTELL B23 Turbo is certified including the luggage compartment 2×44 lbs 2 oz in both wings. As well as in the luggage compartment 33 lbs 1 oz behind the seats. In total you can load 121 lbs of luggage into the aircraft and you still have 551 lbs of payload left. This makes the BRISTELL B23 the winner among GA aircraft worldwide.
BRISTELL B23 Turbo DESIGN
Give your plane a personality. Choose the design you will love.
